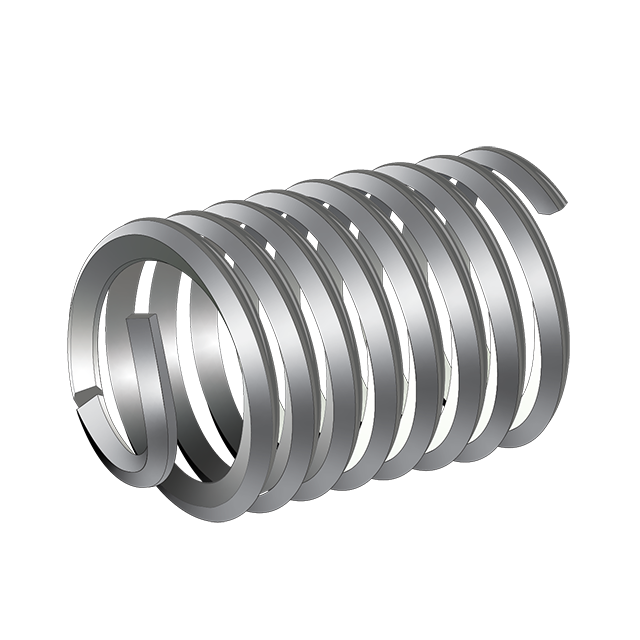

Tanged Helical Inserts
Tanged Helical inserts or Tanged Helicoil inserts have a straightened end called a “Tang” that crosses through the inside diameter of the fastener and is used to complete the installation process. The Tang is broken off of the coil thread fastener after installation.CoilThread tanged inserts are made of cold-rolled 304 stainless steel wire (AS7245), work-hardened to a tensile strength above 200,000 psi, and a hardness of Rc 43-50. The finished surface (8-16 micro-inches) is exceedingly smooth, virtually eliminating friction-induced thread erosion.
Related Articles: Tanged Helical Inserts
.png)
Why Coil Thread Inserts Are Unique Among Fasteners
Threaded fasteners need a solid substrate for lasting performance. The threads must be solidly anchored in the material without loosening or pullout, which can be challenging with softer materials, such as wood and plastics.
What You Need to Know About Coil Thread Inserts
When you use threaded fasteners, you’re bound to run into situations where the threads are stripped or need reinforcing because the material is too soft. That’s when you need to consider coil thread inserts.
All About Helical Insert Applications
Stripped threads can be a nightmare, especially when dealing with soft materials such as aluminum, magnesium, or plastic. When you have a stripped fitting where a bolt just won’t hold or needs reinforcement, you need to find a way to make a fastener connection that is strong and worry-free.
