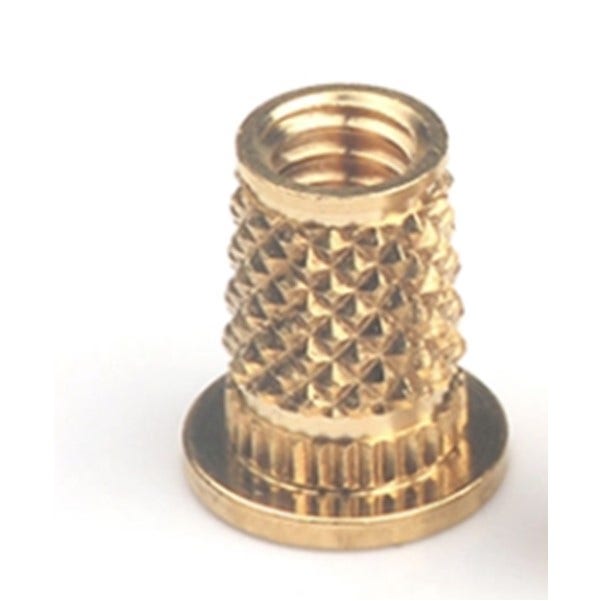

Tapered Style Inserts Our tapered style inserts are designed for easy installation and strong hold in different materials. These
inserts provide long-lasting, reliable threads that are ideal for applications requiring high strength and resistance to vibration. Enhance your projects with Bay Supply’s tapered style inserts.
DV-002-TH E-Z LOK E-Z Sonic Internal Thread Size
#2-56
For Use With
Thermoplastic
Drill Size
See Dimensional Dwg
Installed Length
0.190 Inch
DV-004-TH E-Z LOK E-Z Sonic Internal Thread Size
#4-40
For Use With
Thermoplastic
Drill Size
See Dimensional Dwg
Installation Tool Part No.
HST-004
Installed Length
0.220 Inch
DV-006-TH E-Z LOK E-Z Sonic Internal Thread Size
#6-32
For Use With
Thermoplastic
Drill Size
See Dimensional Dwg
Installation Tool Part No.
HST-006
Installed Length
0.250 Inch
DV-008-TH E-Z LOK E-Z Sonic Internal Thread Size
#8-32
For Use With
Thermoplastic
Drill Size
See Dimensional Dwg
Installation Tool Part No.
HST-008
Installed Length
0.310 Inch
DV-124-TH E-Z LOK E-Z Sonic Internal Thread Size
#10-24
For Use With
Thermoplastic
Drill Size
See Dimensional Dwg
Installation Tool Part No.
HST-332
Installed Length
0.380 Inch
DV-132-TH E-Z LOK E-Z Sonic Internal Thread Size
#10-32
For Use With
Thermoplastic
Drill Size
See Dimensional Dwg
Installation Tool Part No.
HST-332
Installed Length
0.380 Inch
DV-316-TH E-Z LOK E-Z Sonic Internal Thread Size
#3/8-16
For Use With
Thermoplastic
Drill Size
See Dimensional Dwg
Installed Length
0.630 Inch
DV-420-TH E-Z LOK E-Z Sonic Internal Thread Size
#1/4-20
For Use With
Thermoplastic
Drill Size
See Dimensional Dwg
Installation Tool Part No.
HST-4
Installed Length
0.500 Inch
DV-428-TH E-Z LOK E-Z Sonic Internal Thread Size
#1/4-28
For Use With
Thermoplastic
Drill Size
See Dimensional Dwg
Installation Tool Part No.
HST-4
Installed Length
0.500 Inch
DV-518-TH E-Z LOK E-Z Sonic Internal Thread Size
#5/16-18
For Use With
Thermoplastic
Drill Size
See Dimensional Dwg
Installed Length
0.560 Inch
